Model Whirlpool N3257^1 – Common Parts & Diagrams
03 - ELECTRIC GRILL , ELECTRIC COIL

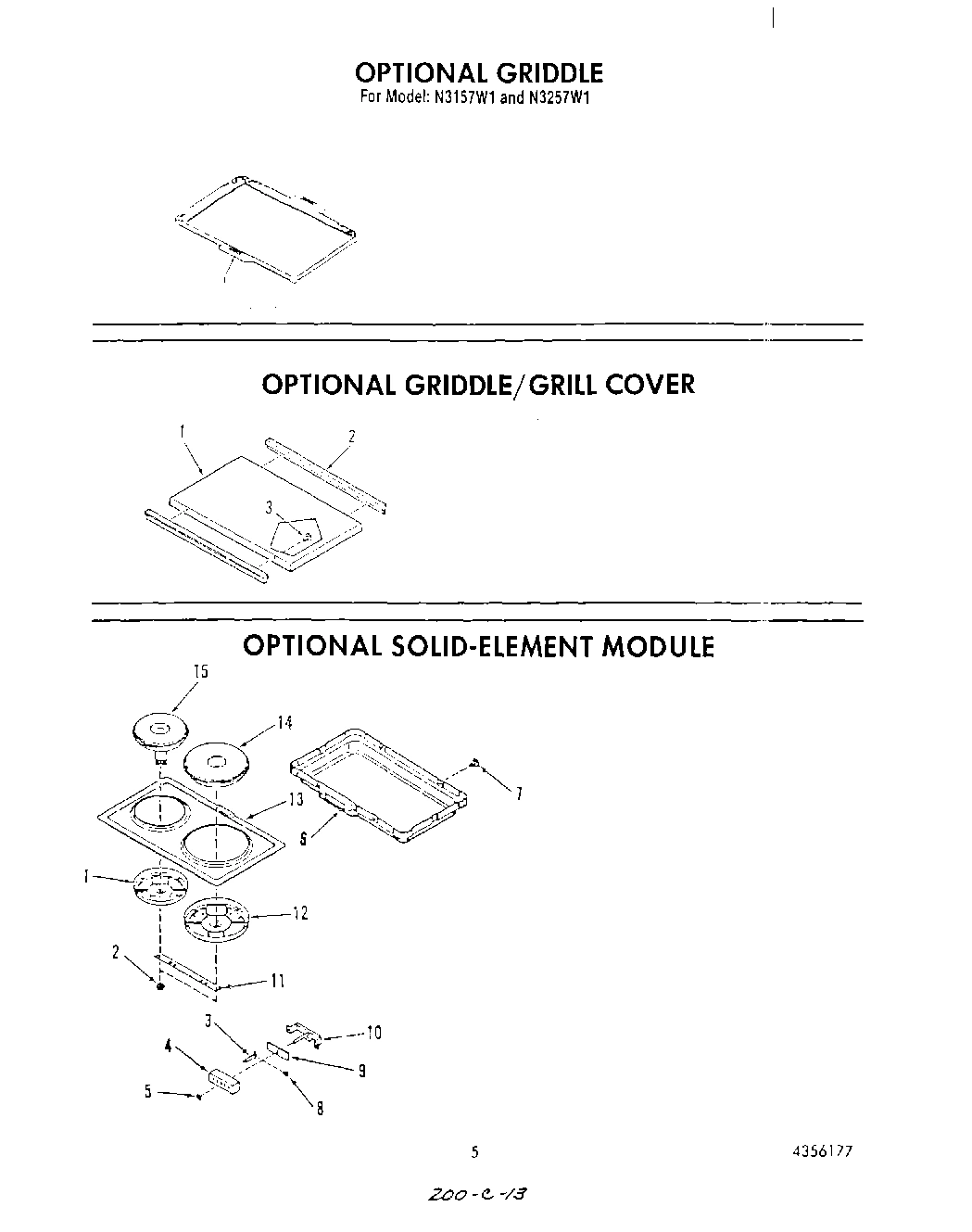

04 - GRIDDLE , GRIDDLE/GRILL COVER

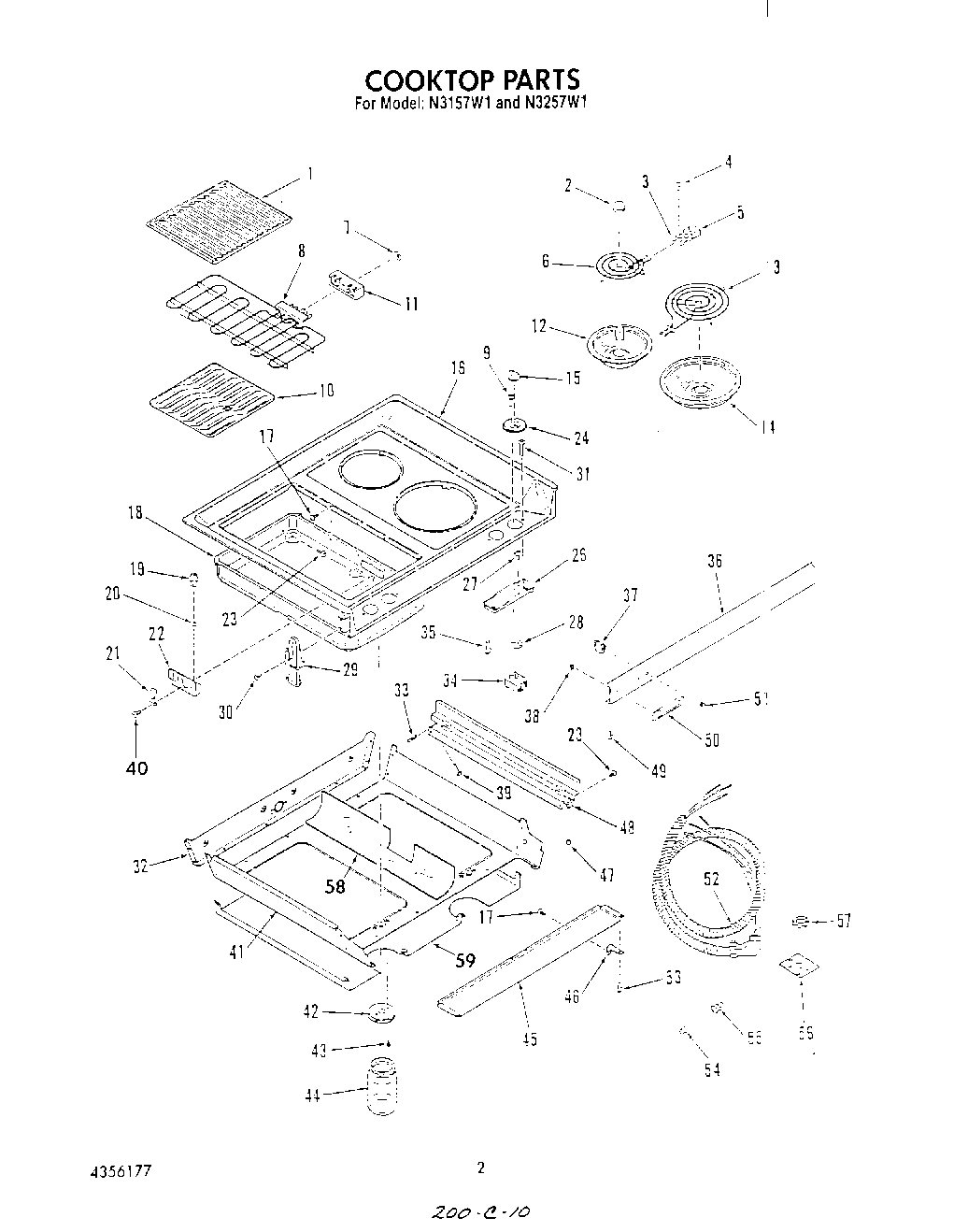

02 - COOK TOP

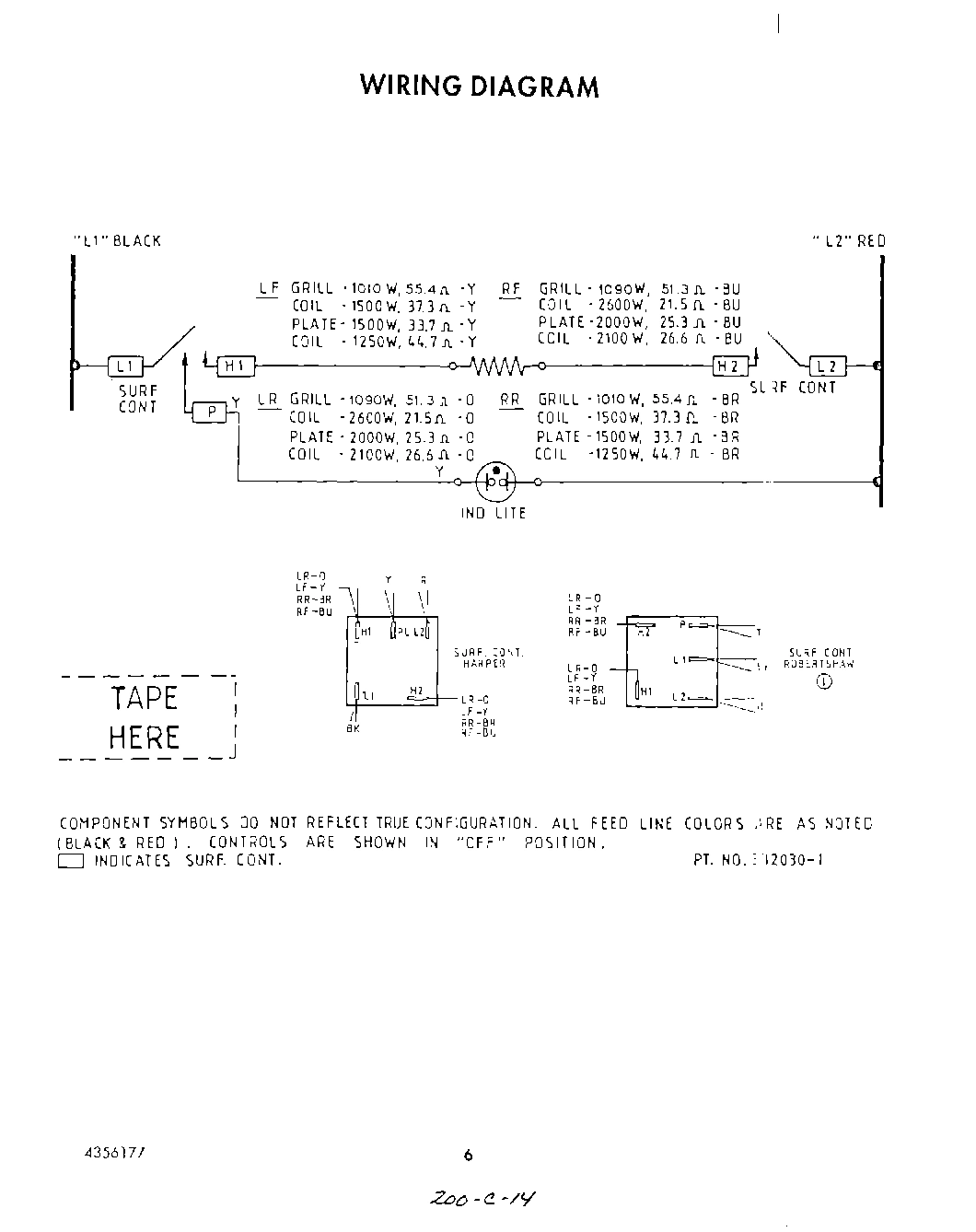

05 - WIRING DIAGRAM
Common parts from model Whirlpool N3257^1
1
Grill, Grate (2) WPL 4335911 Contact Us For Availability
1
Clamp WPL 4335942 Contact Us For Availability
1
Cover WPL 4336005 Contact Us For Availability
1
Griddle WPL 4338460 Contact Us For Availability
2
Medallion (2) All N31571 Models WPL 4332691 Contact Us For Availability
2
Handle, (Left/Right) WPL 4336006 Contact Us For Availability
2
Nut, Mount. (2) WPL 4336026 Contact Us For Availability
3
Pin, Terminal (4) WPL 4330875 Contact Us For Availability
3
Screw, No. 6 x 1/4 WPL 4336235 Contact Us For Availability
4
Screw, No.7-32x5/16 (2) N31571 Mdl. WPL 4327985 Contact Us For Availability
5
Top, Main (Chrome) WPL 4335980 Contact Us For Availability
5
Top, Main (Almond) WPL 4336458 Contact Us For Availability
5
Grid (2) WPL 4336502 Contact Us For Availability
6
Pan-Module WPL 4336604 Contact Us For Availability
7
Nut, Speed WPL 4323399 Contact Us For Availability
7
Screw, No.8-32 x 3/8`` WPL 4331822 Contact Us For Availability
8
Element, Grill WPL 4337409 Contact Us For Availability
9
Pan, Module WPL 4336605 Contact Us For Availability
9
Insulator WPL 4330873 Contact Us For Availability
9
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
10
Bracket WPL 4335944 Contact Us For Availability
10
Grill, Reflector (2 required) WPL 4336807 Contact Us For Availability
11
Block, Terminal Grill element WPL 4335910 Contact Us For Availability
11
Element Strap WPL 4337575 Contact Us For Availability
12
Clamp, Elmnt. WPL 4335941 Contact Us For Availability
13
Top, Main (Chrome) WPL 4335938 Contact Us For Availability
13
Top, Main (Almond) WPL 4336457 Contact Us For Availability
15
Knob, Infinite (4) WPL 4342624 Contact Us For Availability
16
Top, Main (White N3157W) WPL 4342639 Contact Us For Availability
16
Top, Main (White N3257W) WPL 4342640 Contact Us For Availability
16
Top, Main (Almond N3157L) WPL 4342641 Contact Us For Availability
16
Top, Main (Almond N3257L) WPL 4342642 Contact Us For Availability
16
Top, Main (Black N3157B) WPL 4342643 Contact Us For Availability
16
Top, Main (Black N3257B) WPL 4342644 Contact Us For Availability
16
Top, Main (Chrome N3157X) WPL 4343084 Contact Us For Availability
16
Top, Main (Chrome N3257X) WPL 4343085 Contact Us For Availability
17
Screw WPL 4338182 Contact Us For Availability
17
Screw No.6-20x3/8 WPL 4335339 Contact Us For Availability
18
Grease Well (Left) WPL 4337016 Contact Us For Availability
18
Grease Well (Right) WPL 4337017 Contact Us For Availability
19
Terminal - Female WPL 4337042 Contact Us For Availability
21
Clamp, Terminal Block WPL 4336251 Contact Us For Availability
22
Block, Terminal WPL 4337041 Contact Us For Availability
24
Bezel, Knob (Left Rear) WPL 4342647 Contact Us For Availability
24
Bezel, Knob (Right Rear) WPL 4342648 Contact Us For Availability
24
Bezel, Knob (Left Front) WPL 4342649 Contact Us For Availability
24
Bezel, Knob (Right Front) WPL 4342650 Contact Us For Availability
26
Mounting tray Switch (Rt or Lt) WPL 4336686 Contact Us For Availability
27
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
28
Seal, Inf. Control (4 Required) WPL 4325524 Contact Us For Availability
29
End Cap (Left) WPL 4335813 Contact Us For Availability
29
End Cap (Right) WPL 4335814 Contact Us For Availability
30
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
31
Scr WPL 4342651 Contact Us For Availability
32
WPL 4335895 WPL 4335895 Contact Us For Availability
33
WPL 4335925 WPL 4335925 Contact Us For Availability
34
WPL 4336360 WPL 4336360 Contact Us For Availability
35
WPL 4331573 WPL 4331573 Contact Us For Availability
36
WPL 4336911 WPL 4336911 Contact Us For Availability
37
WPL 4336248 WPL 4336248 Contact Us For Availability
38
WPL 4323217 WPL 4323217 Contact Us For Availability
39
WPL 4335926 WPL 4335926 Contact Us For Availability
40
WPL 4324647 WPL 4324647 Contact Us For Availability
41
WPL 4337011 WPL 4337011 Contact Us For Availability
42
WPL 4335900 WPL 4335900 Contact Us For Availability
43
WPL 4323953 WPL 4323953 Contact Us For Availability
45
WPL 4335905 WPL 4335905 Contact Us For Availability
46
WPL 4336164 WPL 4336164 Contact Us For Availability
47
WPL 4323675 WPL 4323675 Contact Us For Availability
48
WPL 4335924 WPL 4335924 Contact Us For Availability
49
WPL 4336048 WPL 4336048 Contact Us For Availability
50
WPL 4335903 WPL 4335903 Contact Us For Availability
51
WPL 4336078 WPL 4336078 Contact Us For Availability
52
WPL 4337040 WPL 4337040 Contact Us For Availability
54
WPL 4324204 WPL 4324204 Contact Us For Availability
55
WPL 4324205 WPL 4324205 Contact Us For Availability
56
WPL 4336991 WPL 4336991 Contact Us For Availability
57
WPL 4324132 WPL 4324132 Contact Us For Availability
58
WPL 4336231 WPL 4336231 Contact Us For Availability
59
WPL 4335920 WPL 4335920 Contact Us For Availability
59
WPL 4335928 WPL 4335928 Contact Us For Availability
59
WPL 4336246 WPL 4336246 Contact Us For Availability
× ![]()
